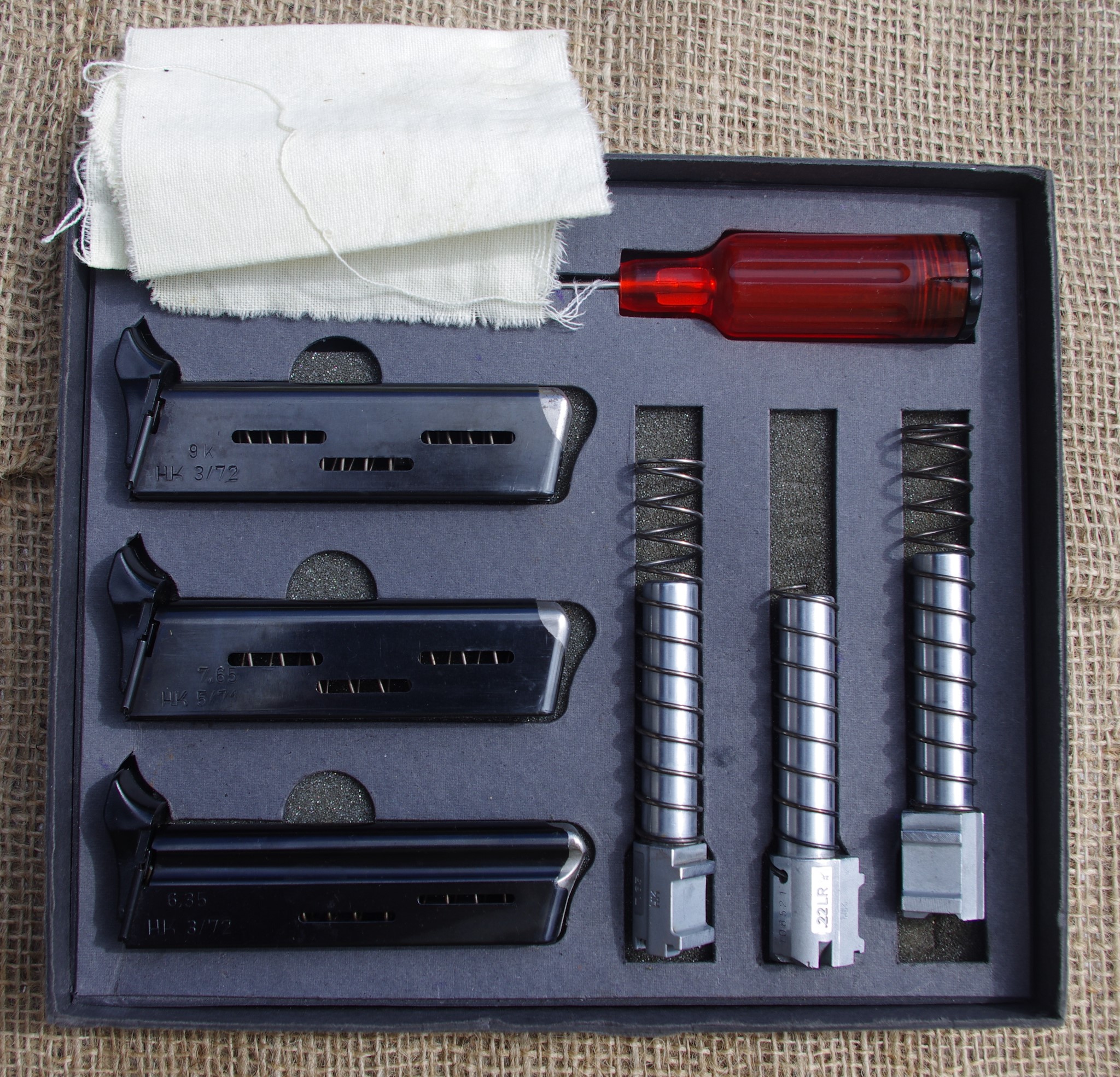

H&K4. Very Rare complete with 4 different barrels and magazines in a box.

Reference
DR316
Firearm calibre
.22LR 6.35br 7.65br 9mmK
Barrel length
85mm
Circa
1972
Military marks
No
Matching numbers
Yes
Manufacturer
H&K
Licence
Model 3
Model 4
Theme
Firearms
Finish
10
Refinished
No
Mechanics
10
Bore
10
Grips
10

The set appears to be unfired.

The H&K Model 4 was named for the fact that it was offered in four different calibres – .22LR, .25 ACP, .32 ACP, and .380 ACP. The gun came with a complete set of spare barrels and magazines to allow conversion between all of them, and interesting feature not offered by any other pistols like it at the time. The design was by Alex Seidel, one of the founding engineers of H&K. He had familiarity with the Mauser HSc from his time working at Mauser, and it was the rough basis for the HK4.

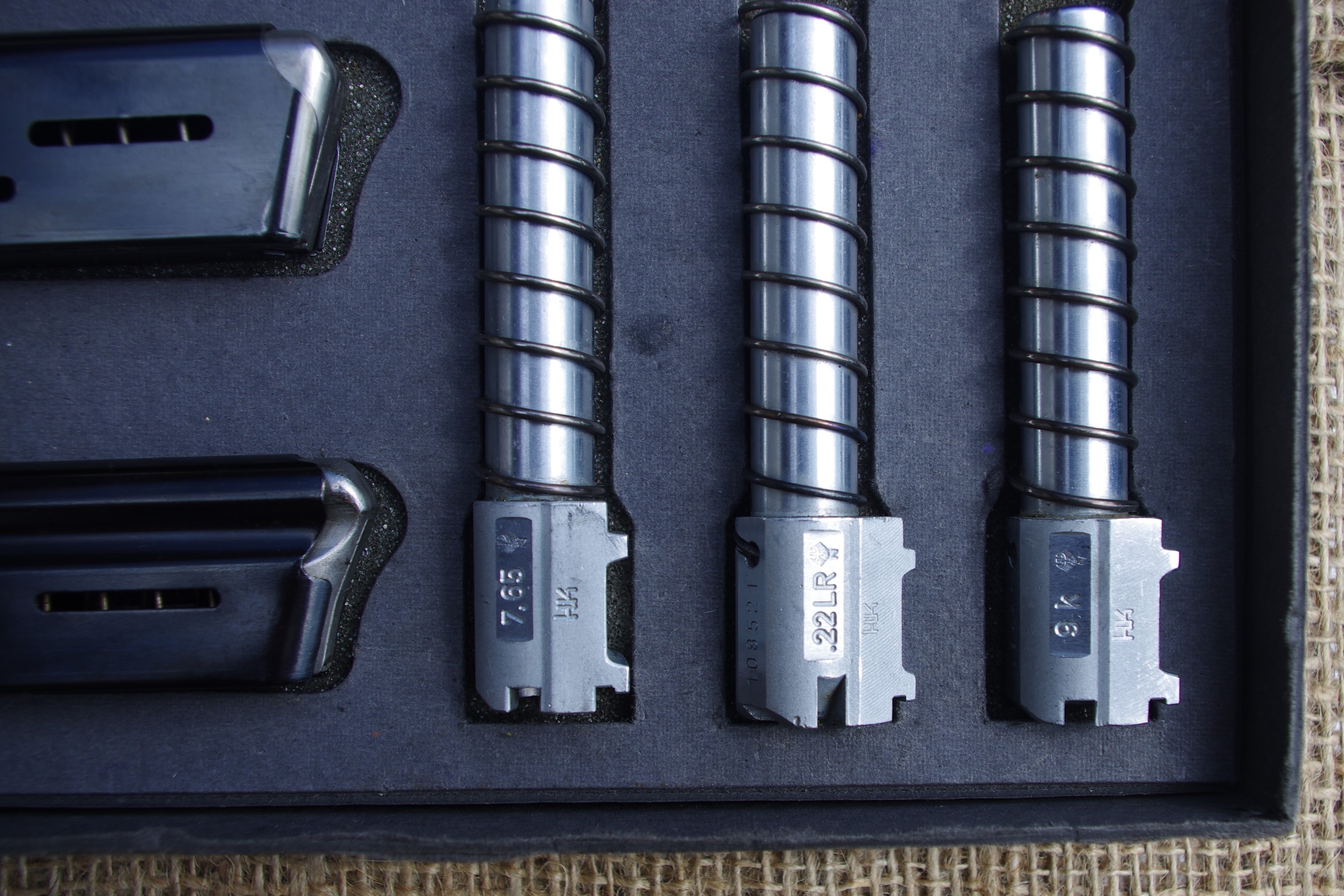

The changes between centrefire calibres required nothing more than swapping barrels (and recoil springs, which were pinned to the barrels) and magazines. Differing spring strength for each calibre were enough to make the gun both safe and reliable in the different chambering’s. The convert too .22LR rimfire, it was also necessary to unscrew the removable breech face and flip it around. The breech face had two firing pin holes (one centrefire and one rimfire), and the firing pin could pivot enough house either one. When the breech face was removed, the firing pin could be positioned for whichever setting was desired.

The HK4 was interesting and reasonably successful, but never able to really compete with guns like the Walther PP and PPK. During a 16-year production run from 1968 until 1984 a total of 38,200 were made, including 12,400 for the German customs police. A very few boxed sets were made out of the civilian total of 25,800. From the sales that I have observed possibly as low as 5- 10% of that number were boxed.

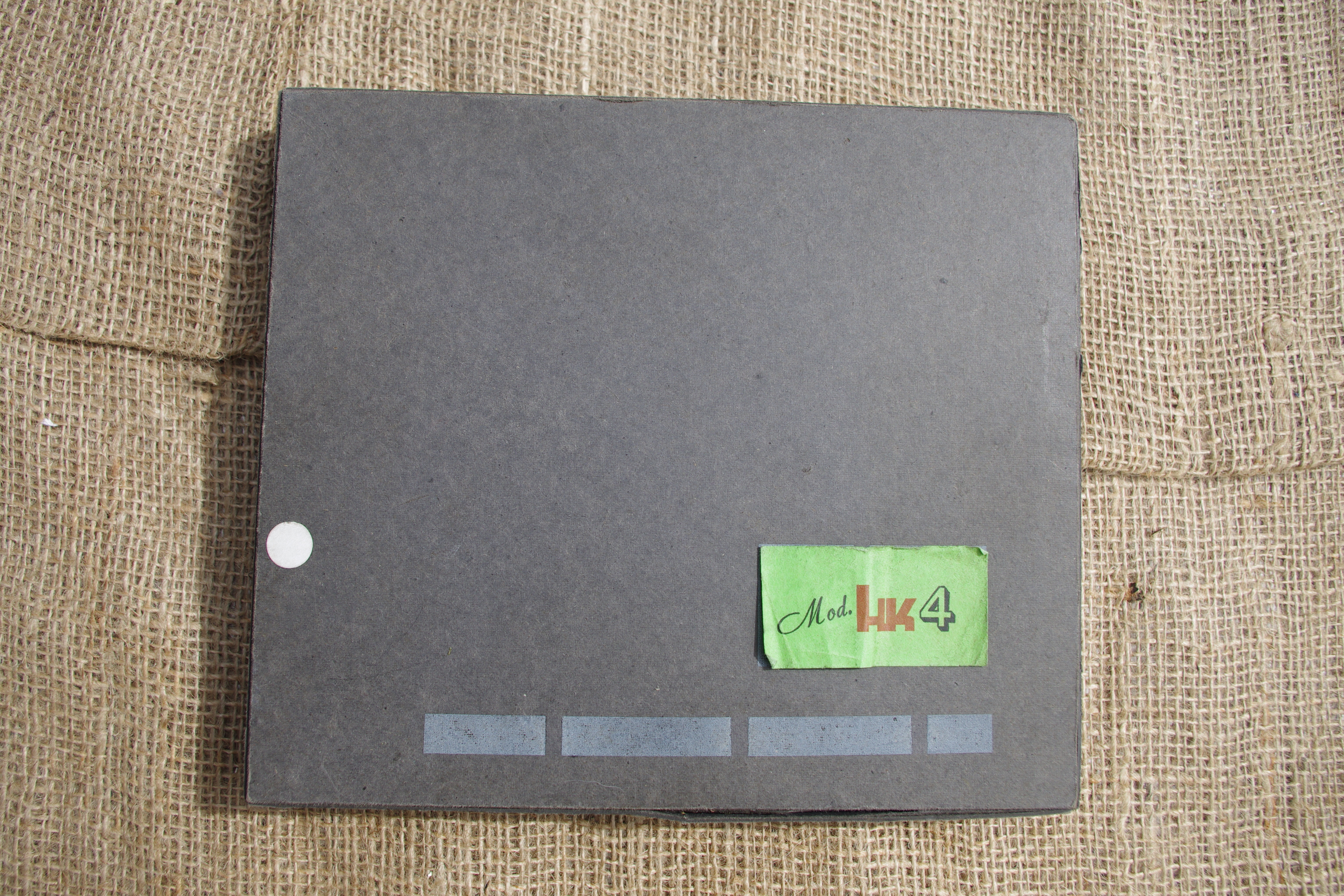

There appear to be several different versions of boxed sets, this is the only one I have seen of this type with a screwdriver included. The box is obviously correct and all the magazines are dated 1972, the only possible fault and I don’t know if it is incorrect is that the barrels are not consecutively numbered.
